Valtra
A23 Handwheel, Offset - Fixed Handle
A23 Handwheel, Offset - Fixed Handle
Part No.:
Regular price
$21.55 USD
Regular price
Sale price
$21.55 USD
Unit price
per
Couldn't load pickup availability
- Modern, and yet surprisingly affordable hand-wheel comes with round machined rim, and two different finishes to fit your budget.
- A23 is polished, chrome-plated and ready to use, and the wheel is tapped and ready for the handle.
- 8” size and larger comes with wavy inside rim for better gripping.
- 3” - 8” dia. has three spokes, 10” - 16” diameter has five spokes.

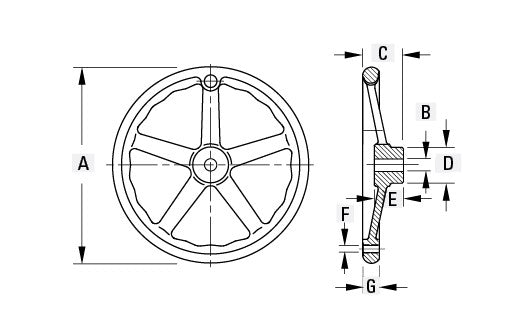

| Part No. | Handle | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| A23-3F | B5-19 | 3" | 3/8 | 1-3/8 | 1" | 1" | #10-24 | 1/2 |
| A23-4F | B5-19 | 4" | 3/8 | 1-1/2 | 1-1/8 | 1-1/16 | #10-24 | 9/16 |
| A23-5F | B5-25 | 5" | 3/8 | 1-5/8 | 1-1/4 | 1-3/16 | 1/4-20 | 19/32 |
| A23-6F | B5-31 | 6" | 1/2 | 1-13/16 | 1-3/8 | 1-1/4 | 5/16-18 | 21/32 |
| A23-8F | B5-37 | 8" | 5/8 | 2-3/16 | 1-21/32 | 1-1/2 | 3/8-16 | 7/8 |
| A23-10F | B5-37 | 10" | 5/8 | 2-3/8 | 1-7/8 | 1-21/32 | 3/8-16 | 15/16 |
| A23-12F | B5-50 | 12" | 3/4 | 2-1/2 | 2-5/32 | 1-25/32 | 1/2-13 | 1" |
-
