Valtra
A4 Handwheel, Stainless Steel
A4 Handwheel, Stainless Steel
Part No.:
Regular price
$81.40 USD
Regular price
Sale price
$81.40 USD
Unit price
per
Couldn't load pickup availability

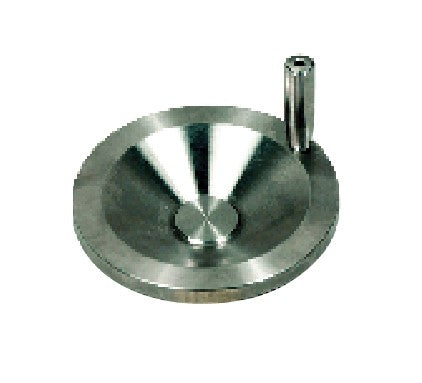

- The dish type handwheel comes with a stainless steel revolving handle. Stainless steel handwheel comes with center drill hole.
- The wheel and handle are completely machined giving it a nice smooth finish.
- To order the handwheel only without the handle, remove the "R" suffix in the Part No.

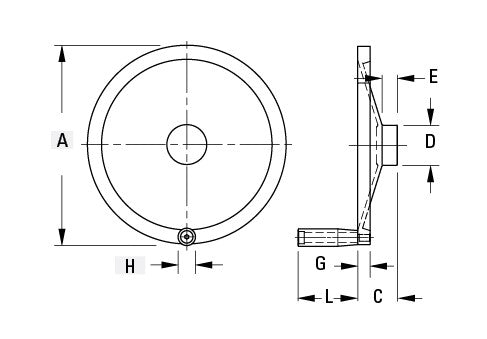

| Part No. | A | C | D | E | G | H | L |
|---|---|---|---|---|---|---|---|
| A4-3SR | 3" | 1.10 | 0.87 | 0.475 | 0.24 | 0.39 | 1.49 |
| A4-4SR | 4" | 1.25 | 1.02 | 0.475 | 0.31 | 0.47 | 1.57 |
| A4-6SR | 6" | 1.50 | 1.50 | 0.475 | 0.50 | 0.75 | 2.50 |
| A4-8SR | 8" | 1.80 | 1.80 | 0.625 | 0.56 | 0.87 | 3.00 |
| A4-10SR | 10" | 2.00 | 2.00 | 0.75 | 0.62 | 0.87 | 3.00 |
-
