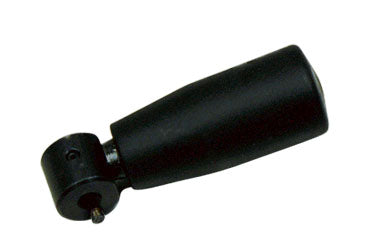

B4 Handles, Foldable Revolving (Female Thread)
B4 Handles, Foldable Revolving (Female Thread)
Part No.:
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
per
Couldn't load pickup availability
- This handle can be folded away as required. To change from the vertical to horizontal position, pull the spring loaded handle out and fold away.
- The handle comes in two forms, with female and male threads.
- Female thread only - to prevent the head from turning, the head should be pinned down with a 3mm roll pin (std. accessory).

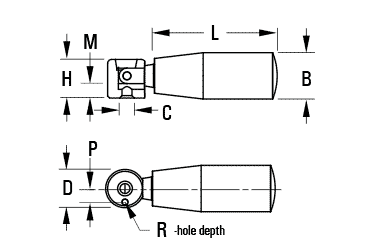

| Part No. | L | B | C | D | H | M | P | R | |
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Stainless Steel | ||||||||
| B4-2A | B4-2A-SS | 2.00 | 7/8 | #10-24 | 0.63 | 5/8 | 5/32 | 0.197 | 0.158 |
| B4-4A | B4-4A-SS | 2.50 | 15/16 | 1/4-20 | 0.78 | 25/32 | 7/32 | 0.276 | 0.197 |
| B4-6A | B4-6A-SS | 3.15 | 1" | 1/4-20 | 0.78 | 25/32 | 7/32 | 0.276 | 0.197 |
-
