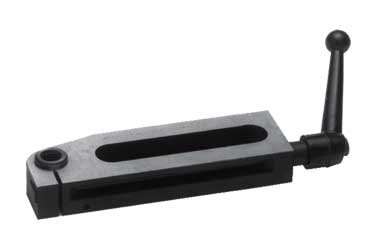

Valtra

Bedding Support

Bedding Support

Part No.:

$119.00 USD
$119.00 USD
Sale Sold out
A
  • Used in addition to the conventional three point fixed supports.
  • Low profile unit can be slid under the workpiece and positioned where the cutter is most likely to create chatter and vibration.
  • Spring-loaded plunger is first depressed and held down with the lock handle. Once positioned, the handle is released.
  • Turning the handle will tighten the plunger to support a load of 500-1000 lbs. depending on the model.
  • A 1/2-13 stud can be threaded into the plunger to raise height of the support.

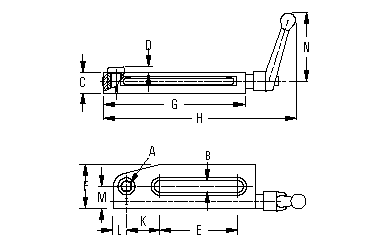

Part No. A B C D (Max.
Stroke)		 E F G H K L M N
850201 5/16-18 0.33 0.71 0.11 1-13/32 1-3/16 3-3/8 5-3/16 1-1/16 13/32 25/32 2-9/16
850202 1/2-13 0.53 0.95 0.23 3-9/16 2" 6-1/2 8-13/16 1-17/32 19/32 1" 3-1/8
850203 5/18-11 0.67 1.34 0.43 4-1/16 2-3/8 7-1/2 10-5/8 1-3/4 13/16 1-7/16 4-5/16
