Bullet Nose Pin (Relieved)
Bullet Nose Pin (Relieved)
Part No.:
Regular price
$10.10 USD
Regular price
Sale price
$10.10 USD
Unit price
per
Couldn't load pickup availability
- Bullet nose pins are often used together with matching liners to align two pieces of fixture. Two versions available, round and relieved.
- The relieved pins locate only radially around the round pin, avoiding redundant location and thus preventing binding, yet still maintaining high accuracy.

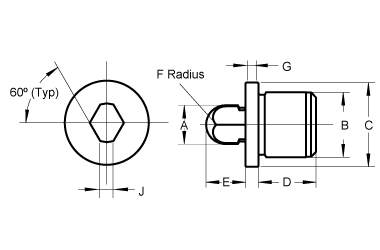

| Part No. | A +.0000 - .0005 |
B +.0000 - .0003 |
C | D | E | F | G | J | Used with Liner | CAD |
|---|---|---|---|---|---|---|---|---|---|---|
| 677006-G | 0.2499 | 0.4078 | 9/16 | 3/8 | 7/32 | 1/8 | 1/16 | 0.08 | 677055-G | STEP |
| 677011-G | 0.3124 | 0.5017 | 5/8 | 3/8 | 9/32 | 5/32 | 1/16 | 0.10 | 677060-G | STEP |
| 677016-G | 0.3748 | 0.6267 | 3/4 | 1/2 | 5/16 | 3/16 | 1/16 | 0.12 | 677065-G | STEP |
| 677021-G | 0.4998 | 0.7518 | 7/8 | 1/2 | 13/32 | 1/4 | 1/16 | 0.17 | 677070-G | STEP |
| 677024-G | 0.7498 | 1.0018 | 1-1/8 | 1/4 | 9/16 | 3/8 | 1/8 | 0.25 | 677073-G | STEP |
| 677028-G | 0.9998 | 1.3771 | 1-1/2 | 1/4 | 3/4 | 1/2 | 1/8 | 0.33 | 677075-G | STEP |
-
