Bullet Nose Pin (Round)
Bullet Nose Pin (Round)
Part No.:
Regular price
$5.00 USD
Regular price
Sale price
$5.00 USD
Unit price
per
Couldn't load pickup availability

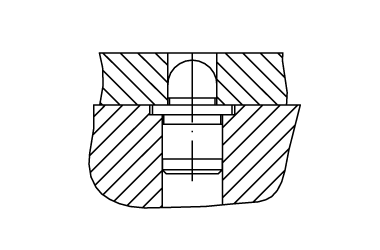

- Bullet nose pins are often used together with matching liners to align two pieces of fixture. Two versions available, round and relieved.
| Part No. | A +.0000 - .0005 |
B +.0000 - .0003 |
C | D | E | F | G | Used with Liner | CAD |
|---|---|---|---|---|---|---|---|---|---|
| 677005-G | 0.2499 | 0.4078 | 9/16 | 3/8 | 7/32 | 1/8 | 1/16 | 677055-G | STEP |
| 677010-G | 0.3124 | 0.5017 | 5/8 | 3/8 | 9/32 | 5/32 | 1/16 | 677060-G | STEP |
| 677015-G | 0.3748 | 0.6267 | 3/4 | 1/2 | 5/16 | 3/16 | 1/16 | 677065-G | STEP |
| 677020-G | 0.4998 | 0.7518 | 7/8 | 1/2 | 13/32 | 1/4 | 1/16 | 677070-G | STEP |
| 677023-G | 0.7498 | 1.0018 | 1-1/8 | 1/4 | 9/16 | 3/8 | 1/8 | 677073-G | STEP |
| 677025-G | 0.9998 | 1.3771 | 1-1/2 | 1/4 | 3/4 | 1/2 | 1/8 | 677075-G | STEP |
-
