Valtra
C4 Handles, Balanced Crank
C4 Handles, Balanced Crank
Part No.:
Regular price
$23.25 USD
Regular price
Sale price
$23.25 USD
Unit price
per
Couldn't load pickup availability
Material: Carbon Steel
Finish: Bright Chrome Plated
- Modern steel balanced crank handles come either with a revolving or fixed handle, and are balanced at the center.
- Center hole is cross-drilled on one wall.

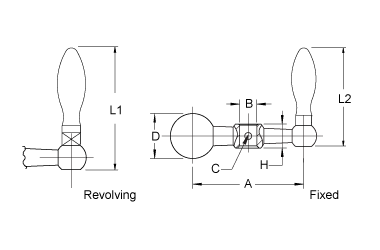

| Part No. | A | B | C (one wall) | D | H | L1 | L2 | Keyway | |
|---|---|---|---|---|---|---|---|---|---|
| Revolving | Fixed | ||||||||
| C4-10A | C4-10B | 2" | 5/16 | 1/8 | 13/16 | 7/16 | 2-5/16 | 2-1/8 | -- |
| C4-20A | C4-20B | 2-1/2 | 5/16 | 1/8 | 1" | 9/16 | 2-3/4 | 2-9/16 | -- |
| C4-30A | C4-30B | 3-1/8 | 3/8 | 5/32 | 1-1/4 | 11/16 | 3-1/2 | 3-1/4 | -- |
| C4-40A | C4-40B | 4" | 3/8 | 5/32 | 1-1/4 | 11/16 | 3-1/2 | 3-1/4 | -- |
| C4-50A | C4-50B | 5" | 1/2 | 3/16 | 1-1/2 | 7/8 | 4-3/16 | 3-15/16 | -- |
| C4-56A | C4-56B | 5" | 5/8 | 3/16 | 1-1/2 | 7/8 | 4-3/16 | 3-15/16 | 1/8W x 1/16L |
| C4-60A | C4-60B | 6-1/8 | 1/2 | 3/16 | 1-1/2 | 7/8 | 4-1/4 | 4-1/16 | -- |
-
