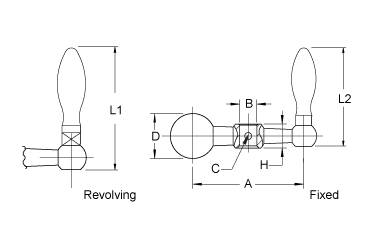

Part No. | A | B | C (one wall) | D | H | L1 | L2 | Keyway | |
---|---|---|---|---|---|---|---|---|---|
Revolving | Fixed | ||||||||
C4-20AS | C4-20BS | 2-1/2 | 5/16 | 1/8 | 1" | 9/16 | 2-3/4 | 2-9/16 | -- |
C4-30AS | C4-30BS | 3-1/8 | 3/8 | 5/32 | 1-1/4 | 11/16 | 3-1/2 | 3-1/4 | -- |
C4-40AS | C4-40BS | 4" | 3/8 | 5/32 | 1-1/4 | 11/16 | 3-1/2 | 3-1/4 | -- |
C4-50AS | C4-50BS | 5" | 1/2 | 3/16 | 1-1/2 | 7/8 | 4-3/16 | 3-15/16 | -- |
C4-55AS | C4-55BS | 5" | 5/8 | 3/16 | 1-1/2 | 7/8 | 4-3/16 | 3-15/16 | 1/8W x 1/16L |
-
