Valtra
Cam Action Clamps
Cam Action Clamps
Part No.:
Regular price
$104.00 USD
Regular price
Sale price
$104.00 USD
Unit price
per
Couldn't load pickup availability

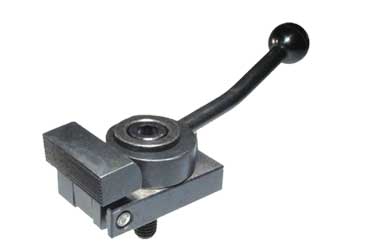

- Low profile quick action clamp with a jaw that pivots forward and downward at the same time when handle is turned.
- Locks positively at any position within its 180º turn and will hold parts that vary slightly in dimension.

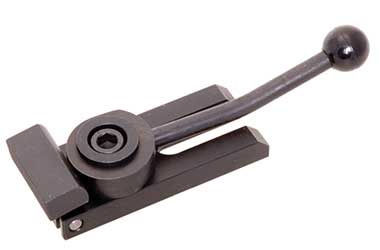

- An extended base version allows position adjustment on machine tables.

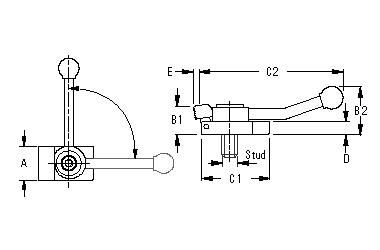

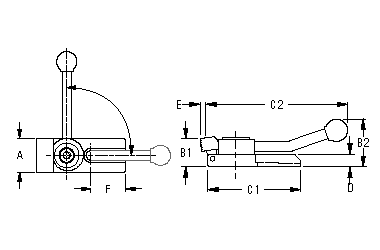

| Part No. | Base | Stud | A | B1 | B2 | C1 | C2 | D | E | F | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 850290 | Standard | 5/16-18 | 1-1/4 | 1" | 1-5/8 | 1-3/4 | 5" | 7/16 | 1/8 | -- | STEP |
| 850295 | Extended | 5/16-18 | 1-1/4 | 1" | 1-5/8 | 3-1/8 | 5" | 7/16 | 1/8 | 1" | -- |
| 850300 | Standard | 1/2-13 | 1-7/8 | 1-1/2 | 2-1/2 | 2-3/4 | 7-1/2" | 5/8 | 5/32 | -- | STEP |
| 850305 | Extended | 1/2-13 | 1-7/8 | 1-1/2 | 2-1/2 | 4-3/4 | 7-1/2" | 5/8 | 5/32 | 1-1/2 | -- |
-
