Valtra
Channel T-Bolts
Channel T-Bolts
Part No.:
Regular price
$0.80 USD
Regular price
Sale price
$0.80 USD
Unit price
per
Couldn't load pickup availability
- Special fastener with slot on the end. With a screwdriver the T-head can be turned and locked in channel.
- The slot also facilitates fastening as the bolt can be steadied or retained in tight spots or odd positions.

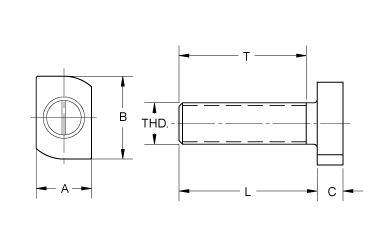

| Part No. | Thread | L | T | A | B | C |
|---|---|---|---|---|---|---|
| 844106 | 10-24 | 5/8 | 5/8 | 0.18 | 0.377 | 0.065 |
| 844207 | 1/4-20 | 3/4 | 3/4 | 0.42 | 0.750 | 0.230 |
| 844210 | 1/4-20 | 1" | 1" | 0.42 | 0.750 | 0.230 |
| 844307 | 5/16-18 | 3/4 | 3/4 | 0.42 | 0.750 | 0.230 |
| 844308 | 5/16-18 | 7/8 | 7/8 | 0.42 | 0.750 | 0.230 |
| 844310 | 5/16-18 | 1" | 1" | 0.42 | 0.750 | 0.230 |
| 844312 | 5/16-18 | 1-1/4 | 1-1/4 | 0.42 | 0.750 | 0.230 |
| 844315 | 5/16-18 | 1-1/2 | 1-1/2 | 0.42 | 0.750 | 0.230 |
| 844412 | 3/8-16 | 1-1/4 | 1-1/4 | 9/16 | 15/16 | 5/16 |
| 844520 | 1/2-13 | 2" | 1-1/2 | 5/8 | 1-1/8 | 11/32 |
| 844535 | 1/2-13 | 3-1/2 | 2-1/2 | 5/8 | 1-1/8 | 11/32 |
| 833539 | 1/2-13 | 4" | 2-1/2 | 5/8 | 1-1/8 | 11/32 |
| 844545 | 1/2-13 | 4-1/5 | 2-1/2 | 5/8 | 1-1/8 | 11/32 |
| 844549 | 1/2-13 | 5" | 2-1/2 | 5/8 | 1-1/8 | 11/32 |
| 844559 | 1/2-13 | 6" | 2-1/2 | 5/8 | 1-1/8 | 11/32 |
| 844620 | 5/8-11 | 2" | 1-1/2 | 3/4 | 1-1/4 | 13/32 |
| 844625 | 5/8-11 | 2-1/2 | 2" | 3/4 | 1-1/4 | 13/32 |
| 844630 | 5/8-11 | 3" | 2-1/2 | 3/4 | 1-1/4 | 13/32 |
| 844635 | 5/8-11 | 3-1/2 | 2-1/2 | 3/4 | 1-1/4 | 13/32 |
| 844650 | 5/8-11 | 5" | 2-1/2 | 3/4 | 1-1/4 | 13/32 |
| 844660 | 5/8-11 | 6" | 2-1/2 | 3/4 | 1-1/4 | 13/32 |
-
