Valtra

D1 Zinc Alloy Adjustable Handles (Metric)

D1 Zinc Alloy Adjustable Handles (Metric)

Part No.:

$6.85 USD
$6.85 USD
Sale Sold out
Type
A (Thread Size)
  • This zinc alloy handle can be rotated to the desired position. When handle is lifted, the teeth are disengaged for re-positioning. Release of the handle will re-engage the teeth for tightening or loosening action.
  • Easily repositioned out of the way to a convenient position for maximum leverage.
  • Choice of five handle sizes, tapped or stud type.

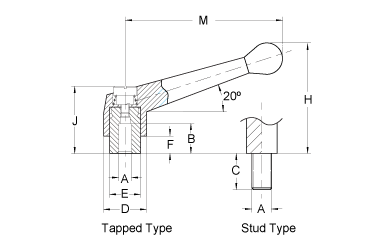

Tapped Type

Part No. A B D E F H J M
D1-A1-M6 M6 5/16 17/32 25/64 5/32 1-15/16 31/32 1-19/32
D1-A2-M8 M8 7/16 3/4 17/32 1/4 1-13/16 1-1/8 2-9/16
D1-A3-M10 M10 1/2 7/8 5/8 13/32 2-5/16 1-1/2 3-1/8
D1-A4-M12 M12 5/8 1" 3/4 13/32 2-5/8 1-11/16 3-3/4
D1-A5-M16 M16 7/8 1-1/14 29/32 15/32 3-1/8 2" 4-5/16



Stud Type

Part No. A C D E F H J M
D1-B1-M6 M6 * max 1-1/2 17/32 25/64 5/32 1-15/16 31/32 1-19/32
D1-B2-M8 M8 * max 2" 3/4 17/32 1/4 1-13/16 1-1/8 2-9/16
D1-B3-M10 M10 * max 2" 7/8 5/8 13/32 2-5/16 1-1/2 3-1/8
D1-B4-M12 M12 * max 3" 1" 3/4 13/32 2-5/8 1-11/16 3-3/4
D1-B5-M16 M16 * max 3" 1-1/14 29/32 15/32 3-1/8 2" 4-5/16
