D10 European Design Adjustable Handle - Stud Type

D10 European Design Adjustable Handle - Stud Type

Part No.:

$6.25 USD
$6.25 USD
Sale Sold out
Type
A (Thread Size)
C (Stud Length)
  • This zinc alloy handle can be rotated to the desired position. When handle is lifted, the teeth are disengaged for re-positioning. Release of the handle will re-engage the teeth for tightening or loosening action.
  • Easily repositioned out of the way to a convenient position for maximum leverage.
  • Choice of five handle sizes.

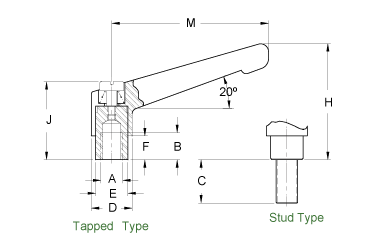

Part No. A C D E F H J M
Black Bright
Chrome
D10-B12 D10C-B12 1/4-20 1/2 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-B14 D10C-B14 1/4-20 3/4 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-B16 D10C-B16 1/4-20 1" 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-B18 D10C-B18 1/4-20 1-1/2 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-B22 D10C-B22 5/16-18 3/4 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-B24 D10C-B24 5/16-18 1" 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-B26 D10C-B26 5/16-18 1-1/2 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-B28 D10C-B28 5/16-18 2" 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-B32 D10C-B32 3/8-16 3/4 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-B34 D10C-B34 3/8-16 1" 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-B36 D10C-B36 3/8-16 1-1/2 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-B38 D10C-B38 3/8-16 2" 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-B42 D10C-B42 1/2-13 1" 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-B44 D10C-B44 1/2-13 1-1/2 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-B46 D10C-B46 1/2-13 2" 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-B48 D10C-B48 1/2-13 2-1/2 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-B52 D10C-B52 5/8-11 1-1/2 1-3/16 29/32 7/16 3" 2" 4-11/64
D10-B54 D10C-B54 5/8-11 2" 1-3/16 29/32 7/16 3" 2" 4-11/64
D10-B56 D10C-B56 5/8-11 2-1/2 1-3/16 29/32 7/16 3" 2" 4-11/64
D10-B58 D10C-B58 5/8-11 3" 1-3/16 29/32 7/16 3" 2" 4-11/64
