Valtra

D10 European Design Adjustable Handle - Tapped Type

D10 European Design Adjustable Handle - Tapped Type

Part No.:

$6.20 USD
$6.20 USD
Sale Sold out
Type
A (Thread Size)
B (Tapped Depth)
  • This zinc alloy handle can be rotated to the desired position. When handle is lifted, the teeth are disengaged for re-positioning. Release of the handle will re-engage the teeth for tightening or loosening action.
  • Easily repositioned out of the way to a convenient position for maximum leverage.
  • Choice of five handle sizes.

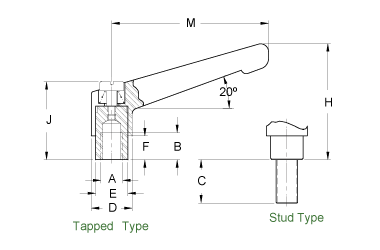

Part No. A B D E F H J M
Black Bright
Chrome
D10-A10 D10C-A10 1/8 Ream 5/16 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-A11 D10C-A11 #10-24 5/16 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-A12 D10C-A12 1/4-20 5/16 33/64 25/64 5/32 1-3/8 31/32 1-3/4
D10-A20 D10C-A20 1/8 Ream 7/16 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-A21 D10C-A21 1/4-20 7/16 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-A22 D10C-A22 5/16-18 7/16 45/64 17/32 19/64 1-53/64 1-7/32 2-7/16
D10-A30 D10C-A30 1/4 Ream 1/2 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-A31 D10C-A31 5/16-18 1/2 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-A32 D10C-A32 3/8-16 1/2 53/64 5/8 25/64 2-13/64 1-33/64 3-1/32
D10-A40 D10C-A40 5/16 Ream 5/8 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-A41 D10C-A41 3/8-16 5/8 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-A42 D10C-A42 1/2-13 5/8 15/16 3/4 13/32 2-1/2 1-43/64 3-37/64
D10-A50 D10C-A50 3/8 Ream 7/8 1-3/16 29/32 7/16 3" 2" 4-11/64
D10-A51 D10C-A51 1/2-13 7/8 1-3/16 29/32 7/16 3" 2" 4-11/64
D10-A52 D10C-A52 5/8-11 7/8 1-3/16 29/32 7/16 3" 2" 4-11/64
