Valtra

D12 Handles, Adjustable Plastic - Stud Type

D12 Handles, Adjustable Plastic - Stud Type

Part No.:

$4.30 USD
$4.30 USD
Sale Sold out

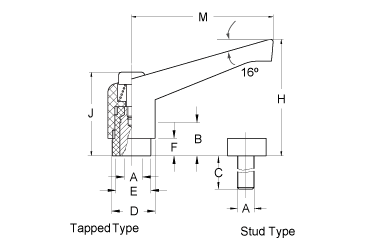

A (Thread Size)
C (Stud Length)
  • Versatile and lightweight, designed for lighter applications.
  • Smooth action in releasing/engaging movements. When handle is lifted, the teeth are disengaged for re-positioning. Release of the handle will re-engage the teeth for tightening or loosening action.
Part No. A C D E F H J M
D12-0B107 #10-24 3/4 45/64 0.55 0.24 1.5 1.14 1.65
D12-0B205 1/4-20 1/2 45/64 0.55 0.24 1.5 1.14 1.65
D12-0B207 1/4-20 3/4 45/64 0.55 0.24 1.5 1.14 1.65
D12-0B210 1/4-20 1" 45/64 0.55 0.24 1.5 1.14 1.65
D12-0B215 1/4-20 1-1/2 45/64 0.55 0.24 1.5 1.14 1.65
D12-1B107 #10-24 3/4 23/32 0.55 0.24 1.6 1.14 2.00
D12-1B205 1/4-20 1/2 23/32 0.55 0.24 1.6 1.14 2.00
D12-1B207 1/4-20 3/4 23/32 0.55 0.24 1.6 1.14 2.00
D12-1B210 1/4-20 1" 23/32 0.55 0.24 1.6 1.14 2.00
D12-1B215 1/4-20 1-1/2 23/32 0.55 0.24 1.6 1.14 2.00
D12-2B305 5/16-18 1/2 7/8 0.69 0.32 2.1 1.50 2.50
D12-2B307 5/16-18 3/4 7/8 0.69 0.32 2.1 1.50 2.50
D12-2B310 5/16-18 1" 7/8 0.69 0.32 2.1 1.50 2.50
D12-2B312 5/16-18 1-1/4 7/8 0.69 0.32 2.1 1.50 2.50
D12-2B315 5/16-18 1-1/2 7/8 0.69 0.32 2.1 1.50 2.50
D12-2B320 5/16-18 2" 7/8 0.69 0.32 2.1 1.50 2.50
D12-2B325 5/16-18 2-1/2 7/8 0.69 0.32 2.1 1.50 2.50
D12-3B407 3/8-16 3/4 1-1/16 0.87 0.39 2.6 1.88 3.19
D12-3B410 3/8-16 1" 1-1/16 0.87 0.39 2.6 1.88 3.19
D12-3B412 3/8-16 1-1/4 1-1/16 0.87 0.39 2.6 1.88 3.19
D12-3B415 3/8-16 1-1/2 1-1/16 0.87 0.39 2.6 1.88 3.19
D12-3B420 3/8-16 2" 1-1/16 0.87 0.39 2.6 1.88 3.19
D12-3B425 3/8-16 2-1/2 1-1/16 0.87 0.39 2.6 1.88 3.19
