Valtra

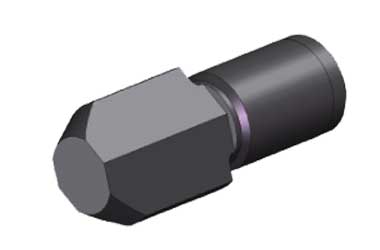

Diamond Pins
Diamond Pins
Part No.:
Regular price
$6.05 USD
Regular price
Sale price
$6.05 USD
Unit price
per
Couldn't load pickup availability
- Heat Treated Steel

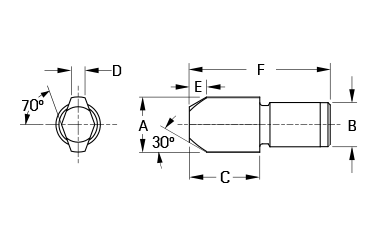

| Part No. | A | A Tolerance | B | B Tolerance | C | D | E | F | CAD |
|---|---|---|---|---|---|---|---|---|---|
| 678006 | 1/4 | 0.2493 / 0.2490 | 3/16 | 0.1878 / 0.1876 | 11/32 | 0.062 | 3/32 | 3/4 | STEP |
| 678011 | 5/16 | 0.3118 / 0.3115 | 1/4 | 0.2503 / 0.2501 | 13/32 | 0.078 | 3/32 | 7/8 | STEP |
| 678016 | 3/8 | 0.3743 / 0.3740 | 5/16 | 0.3128 / 03126 | 1/2 | 0.093 | 1/8 | 1" | STEP |
| 678021 | 1/2 | 0.4993 / 0.4990 | 7/16 | 0.4378 / 0.4376 | 21/32 | 0.125 | 5/32 | 1-3/8 | STEP |
-
