Valtra

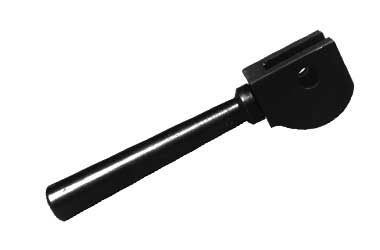

Double Cams

Double Cams

Part No.:

Regular price $18.40 USD
Regular price Sale price $18.40 USD
Sale Sold out
A (Radius)
  • Double cams are for fast change tooling applications that require moderate clamping force.
  • Matching eye bolts and clamp straps available for your clamp assembly.
  • An extended base version allows position adjustment on machine tables.

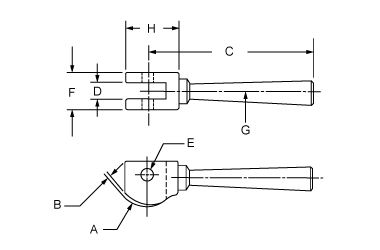

Part No. A
Radius
B
Raise
C D E F G H CAD
849005 9/16 1/16 2-1/2 1/4 3/16 9/16 0.31 0.97 STEP
849010 11/16 1/16 3-1/2 5/16 1/4 5/8 0.38 1.21 STEP
849015 15/16 7/64 5" 1/2 3/8 1-1/8 0.55 1.39 STEP
849020 1-3/16 9/64 5-3/8 5/8 5/8 1-1/4 0.68 2.05 STEP
