Forged Adjusta-Clamps
Forged Adjusta-Clamps
Part No.:
Regular price
$33.05 USD
Regular price
Sale price
$33.05 USD
Unit price
per
Couldn't load pickup availability

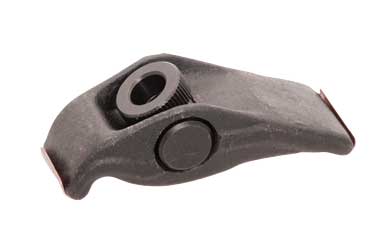

- Rugged forged steel pivot clamp.

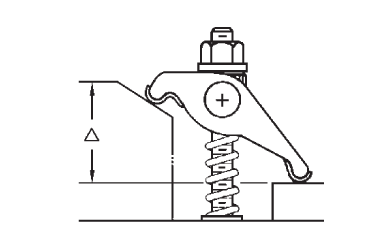

- Instant height adjustment without blocks or shims. One piece assembly allows quick setups and eliminates lost clamp pieces.
- Removable brass shims protect machine table and work piece.

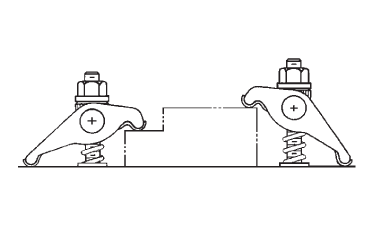

- Clamp can swing 90° in either direction for loading clearance.
- Fast Setup - save up to 90% of setup time.
- Simple - one piece design, no searching for the right step block and shim.
- Space-Saving - takes up little table space.
- Safe - Pivoting action will compensate for work piece variation.
- Versatile - Compact, single piece pivoting design. Numerous accessories make many unique applications possible.

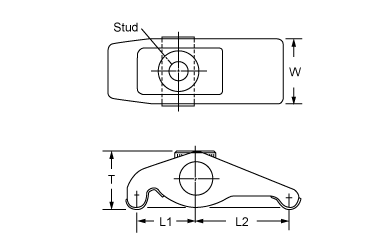

| Part No. | Stud Size | Clamping Range | L1 | L2 | T | W | Weight (LBS.) | Spring for FAC Assembly |
|---|---|---|---|---|---|---|---|---|
| 850740 | 3/8 | 0 ~ 1-3/4 | 1-7/8 | 1-1/8 | 1" | 1-1/4 | 0.6 | 850740-6 |
| 850750 | 1/2 | 0 ~ 2-1/16 | 2-5/16 | 1-7/16 | 1-7/16 | 1-5/8 | 1.1 | 850750-6 |
| 850760 | 5/8 | 0 ~ 3" | 3-1/4 | 2" | 1-7/8 | 1-7/8 | 2.4 | 850760-6 |
| 850770 | 3/4 | 0 ~ 4-1/4 | 3-1/2 | 2-1/8 | 2-1/4 | 2-5/8 | 3.8 | 850770-6 |
| 850790 | 1" | 0 ~ 5-1/2 | 4" | 2-1/4 | 2-7/16 | 3-1/8 | 5.2 | 850790-6 |
-
