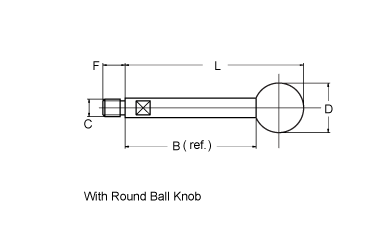

Part No. | L | D | B | C | F |
---|---|---|---|---|---|
G2631-16 | 2.3 | 3/4 | 1.6 | 1/4-20 | 3/8 |
G2631-18 | 2.4 | 3/4 | 1.8 | 1/4-20 | 3/8 |
G2631-24 | 3.1 | 3/4 | 2.4 | 1/4-20 | 3/8 |
G2631-33 | 4.0 | 3/4 | 3.3 | 1/4-20 | 3/8 |
G2631-45 | 5.2 | 3/4 | 4.5 | 1/4-20 | 3/8 |
G3239-15 | 2.4 | 1" | 1.5 | 5/16-18 | 7/16 |
G3239-22 | 3.1 | 1" | 2.2 | 5/16-18 | 7/16 |
G3239-30 | 3.9 | 1" | 3.0 | 5/16-18 | 7/16 |
G3239-40 | 4.9 | 1" | 4.0 | 5/16-18 | 7/16 |
G3239-55 | 6.4 | 1" | 5.5 | 5/16-18 | 7/16 |
G3847-20 | 3.1 | 1-3/8 | 2.0 | 3/8-16 | 1/2 |
G3847-27 | 3.8 | 1-3/8 | 2.7 | 3/8-16 | 1/2 |
G3847-32 | 4.3 | 1-3/8 | 3.2 | 3/8-16 | 1/2 |
G3847-37 | 4.8 | 1-3/8 | 3.7 | 3/8-16 | 1/2 |
G3847-47 | 5.8 | 1-3/8 | 4.7 | 3/8-16 | 1/2 |
G3847-60 | 7.1 | 1-3/8 | 6.0 | 3/8-16 | 1/2 |
G5155-37 | 5.0 | 1-3/8 | 3.7 | 1/2-13 | 5/8 |
G5155-47 | 6.0 | 1-3/8 | 4.7 | 1/2-13 | 5/8 |
G5155-57 | 7.0 | 1-3/8 | 5.7 | 1/2-13 | 5/8 |
G5155-67 | 8.0 | 1-3/8 | 6.7 | 1/2-13 | 5/8 |
G5162-37 | 5.2 | 1-1/2 | 3.7 | 1/2-13 | 5/8 |
G5162-44 | 5.9 | 1-1/2 | 4.4 | 1/2-13 | 5/8 |
G5162-64 | 7.9 | 1-1/2 | 6.4 | 1/2-13 | 5/8 |
G5162-84 | 9.9 | 1-1/2 | 8.4 | 1/2-13 | 5/8 |
G5162-110 | 12.9 | 1-1/2 | 11.0 | 1/2-13 | 5/8 |
-
