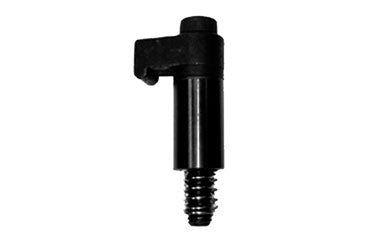

Hook Clamp Assemblies - Socket Head Cap Screw Style
Hook Clamp Assemblies - Socket Head Cap Screw Style
Part No.:
Regular price
$18.30 USD
Regular price
Sale price
$18.30 USD
Unit price
per
Couldn't load pickup availability
- Ideal for installation in jig or fixture where access is limited.
- Hook is spring-loaded for quick release and swings easily away from work piece.
- Supplied with cap screw or stud and nut. Spring included.
- Individual components can be purchased separately.

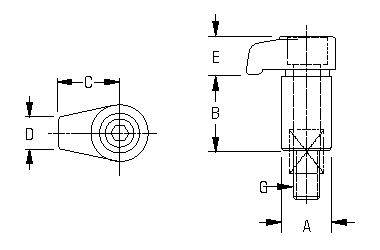

| Part No. | A +.000 / -.001 |
B | C | D | E | G Cap Screw |
CAD | ||
|---|---|---|---|---|---|---|---|---|---|
| Assembly | Body | Cap Screw | |||||||
| 821107 | 821106 | SHCS-3017 | 0.624 | 7/8 | 11/16 | 7/16 | 1/2 | 5/16-18 x 1-3/4 | STEP |
| 821113 | 821112 | SHCS-4030 | 0.874 | 1-21/32 | 1" | 9/16 | 19/32 | 3/8-16 x 3" | STEP |
| 821117 | 821116 | SHCS-5035 | 0.999 | 1-3/4 | 1-3/16 | 3/4 | 13/16 | 1/2-13 x 3-1/2 | STEP |
| 821122 | 821121 | SHCS-5035 | 1.124 | 1-11/16 | 1-7/16 | 7/8 | 7/8 | 1/2-13 x 3-1/2 | STEP |
-
