Valtra

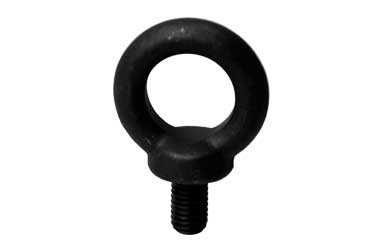

Lifting Eye Bolts
Lifting Eye Bolts
Part No.:
Regular price
$6.90 USD
Regular price
Sale price
$6.90 USD
Unit price
per
Couldn't load pickup availability
- Our shoulder design counteracts the inadvertent side load giving greater strength on angled pulls.
- Shoulder eye bolts are designed for straight vertical pulls. General practice for other than vertical load per military standards are:
- 25% of the safe working load for a 45° load from vertical.
- 20% of the safe working load for a 90° load from vertical.
- For consistent heavy side load (90°) and where shock load may be anticipated, hoist rings with swiveling and pivoting features are to be used.

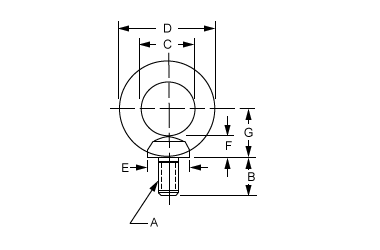

| Part No. | A | B | C | D | E | F | G | Work Load (LBS.) |
|---|---|---|---|---|---|---|---|---|
| 828020 | 1/2-13 | 7/8 | 1-3/16 | 2" | 1" | 7/16 | 1-1/8 | 2,400 |
| 828030 | 5/8-11 | 1-1/16 | 1-3/8 | 2-3/8 | 1-1/8 | 9/16 | 1-1/4 | 4,000 |
| 828040 | 3/4-10 | 1-3/16 | 1-1/2 | 2-5/8 | 1-3/8 | 3/4 | 1-5/16 | 5,000 |
-
