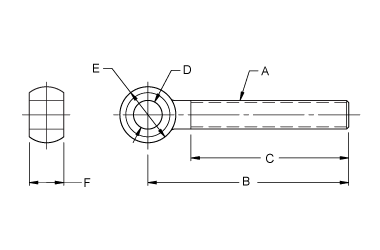

Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
---|---|---|---|---|---|---|
832M06-075 | M6 x 1.0 | 75 | 66 | 6 | 12 | 6 |
832M08-100 | M8 x 1.25 | 100 | 90 | 8 | 16 | 8 |
832M10-100 | M10 x 1.5 | 100 | 85 | 10 | 20 | 10 |
832M10-125 | M10 x 1.5 | 125 | 110 | 10 | 20 | 10 |
832M12-100 | M12 x 1.75 | 100 | 85 | 12 | 24 | 12 |
832M12-125 | M12 x 1.75 | 125 | 110 | 12 | 24 | 12 |
832M16-115 | M16 x 2.0 | 115 | 95 | 16 | 32 | 16 |
832M16-150 | M16 x 2.0 | 150 | 130 | 16 | 32 | 16 |
832M20-150 | M20 x 2.5 | 150 | 125 | 20 | 40 | 20 |
-
