Valtra

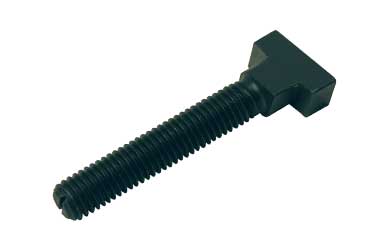

Rotary T-Slot Bolts

Rotary T-Slot Bolts

Part No.:

$14.20 USD
$14.20 USD
Sale Sold out
Shipping calculated at checkout.
A (Thread Size)
L (Length)
  • Combines the convenience of the Rotary T-Slot Nut with the strength and simplicity of the forged T-Slot Bolts.
  • Slot on the top of the bolt makes it easy to rotate the head in the T-Slot. Extra long threaded shank for versatility.
  • Heat treated to Grade 5 strength.

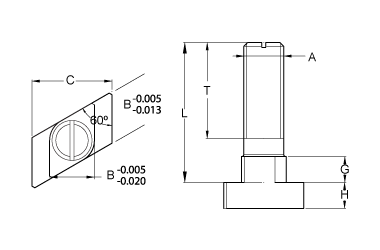

Part No. L T A B C G H
843515 1.5 1.0 1/2-13 0.625 1-1/8 11/32 11/32
843520 2.0 1.5 1/2-13 0.625 1-1/8 11/32 11/32
843525 2.5 2.0 1/2-13 0.625 1-1/8 11/32 11/32
843530 3.0 2.5 1/2-13 0.625 1-1/8 11/32 11/32
843535 3.5 2.5 1/2-13 0.625 1-1/8 11/32 11/32
843540 4.0 2.5 1/2-13 0.625 1-1/8 11/32 11/32
843545 4.5 2.5 1/2-13 0.625 1-1/8 11/32 11/32
843550 5.0 2.5 1/2-13 0.625 1-1/8 11/32 11/32
843560 6.0 2.5 1/2-13 0.625 1-1/8 11/32 11/32
843600 1.9 1.5 5/8-11 0.687 1-1/4 13/32 13/32
843615 1.5 1.0 5/8-11 0.750 1-1/4 13/32 13/32
843620 2.0 1.5 5/8-11 0.750 1-1/4 13/32 13/32
843625 2.5 2.0 5/8-11 0.750 1-1/4 13/32 13/32
843630 3.0 2.5 5/8-11 0.750 1-1/4 13/32 13/32
843635 3.5 2.5 5/8-11 0.750 1-1/4 13/32 13/32
843640 4.0 2.5 5/8-11 0.750 1-1/4 13/32 13/32
843650 5.0 2.5 5/8-11 0.750 1-1/4 13/32 13/32
843660 6.0 2.5 5/8-11 0.750 1-1/4 13/32 13/32
