Valtra

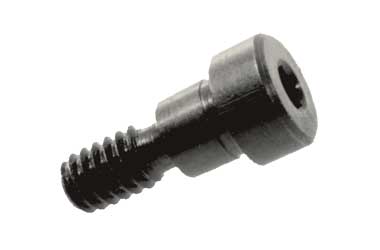

Socket Shoulder Screw (1/4 Dia.)
Socket Shoulder Screw (1/4 Dia.)
Part No.:
Regular price
$2.94 USD
Regular price
Sale price
$2.94 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Shoulder screws are used as pivoting points and retaining bolts for Swing C-Washers, Clamp Straps, and Slip Fit Bushings.
- "A" diameter is precision ground and shoulder height is controlled.
- Hex socket on head makes assembling easy.

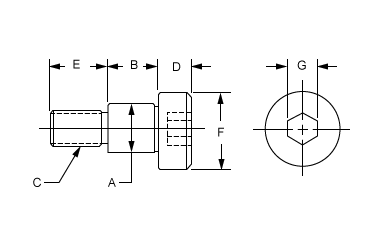

| Part No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 831202 | 1/4 | 1/4 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831203 | 1/4 | 5/16 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831204 | 1/4 | 3/8 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831205 | 1/4 | 1/2 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831206 | 1/4 | 5/8 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831207 | 1/4 | 3/4 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831208 | 1/4 | 7/8 | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
| 831210 | 1/4 | 1" | 10-24 | 3/16 | 3/8 | 3/8 | 1/8 |
-
