Valtra
Socket Shoulder Screws (1/2 Dia.)
Socket Shoulder Screws (1/2 Dia.)
Part No.:
Regular price
$4.35 USD
Regular price
Sale price
$4.35 USD
Unit price
per
Couldn't load pickup availability

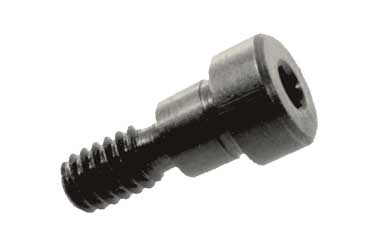

- Shoulder screws are used as pivoting points and retaining bolts for Swing C-Washers, Clamp Straps, and Slip Fit Bushings.
- "A" diameter is precision ground and shoulder height is controlled.
- Hex socket on head makes assembling easy.

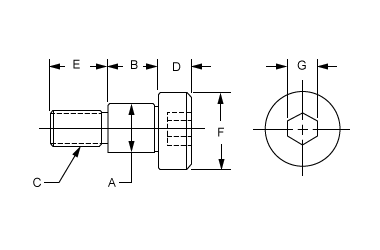

| Part No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 831504 | 1/2 | 3/8 | 3/8-16 | 5/16 | 5/8 | 3/4 | 1/4 |
| 831505 | 1/2 | 1/2 | 3/8-16 | 5/16 | 5/8 | 3/4 | 1/4 |
| 831506 | 1/2 | 5/8 | 3/8-16 | 5/16 | 5/8 | 3/4 | 1/4 |
| 831507 | 1/2 | 3/4 | 3/8-16 | 5/16 | 5/8 | 3/4 | 1/4 |
| 831508 | 1/2 | 7/8 | 3/8-16 | 5/16 | 5/8 | 3/4 | 1/4 |
| 831510 | 1/2 | 1" | 3/8-16 | 5/16 | 5/8 | 3/4 | 1/4 |
-
