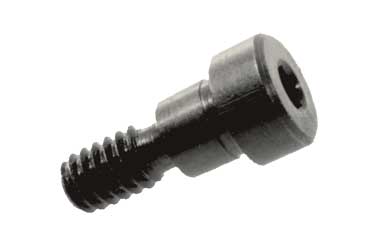

Socket Shoulder Screws (3/8 Dia.)
Socket Shoulder Screws (3/8 Dia.)
Part No.:
Regular price
$3.90 USD
Regular price
Sale price
$3.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Shoulder screws are used as pivoting points and retaining bolts for Swing C-Washers, Clamp Straps, and Slip Fit Bushings.
- "A" diameter is precision ground and shoulder height is controlled.
- Hex socket on head makes assembling easy.

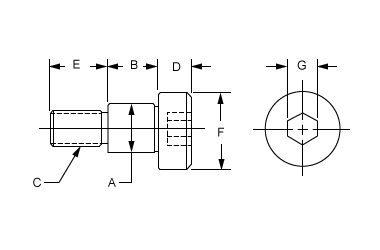

| Part No. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 831402 | 3/8 | 1/4 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831403 | 3/8 | 5/16 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831404 | 3/8 | 3/8 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831405 | 3/8 | 1/2 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831406 | 3/8 | 5/8 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831407 | 3/8 | 3/4 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831408 | 3/8 | 7/8 | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
| 831410 | 3/8 | 1" | 5/16-18 | 1/4 | 1/2 | 9/16 | 3/16 |
-
