Valtra

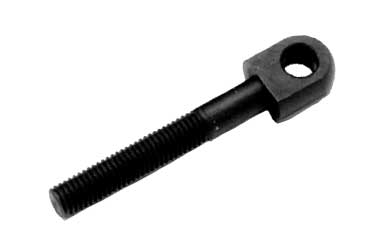

Swing Bolts
Swing Bolts
Part No.:
Regular price
$4.75 USD
Regular price
Sale price
$4.75 USD
Unit price
per
Couldn't load pickup availability
- Heat treated to grade 5 (125,000 p.s.i.).

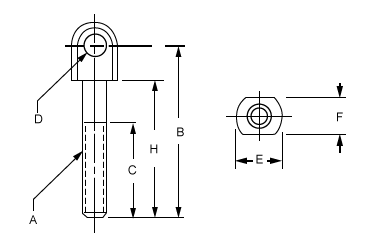

| Part No. | A | B | H | C | D * | E | F |
|---|---|---|---|---|---|---|---|
| 832700 | 1/4-20 | 1-1/2 | 1-3/16 | 3/4 | 1/4 | 1/2 | 5/16 |
| 832710 | 1/4-20 | 2-1/2 | 2-3/16 | 1-1/4 | 1/4 | 1/2 | 5/16 |
| 832720 | 5/16-18 | 2" | 1-5/8 | 1" | 5/16 | 5/8 | 3/8 |
| 832730 | 5/16-18 | 3" | 2-5/8 | 1-3/8 | 5/16 | 5/8 | 3/8 |
| 832740 | 3/8-16 | 2-1/2 | 2" | 1-3/8 | 3/8 | 3/4 | 1/2 |
| 832750 | 3/8-16 | 3-1/2 | 3" | 2" | 3/8 | 3/4 | 1/2 |
| 832760 | 1/2-13 | 3-1/8 | 2-1/2 | 1-3/4 | 1/2 | 1" | 5/8 |
| 832770 | 1/2-13 | 4-1/8 | 3-1/2 | 2-1/4 | 1/2 | 1" | 5/8 |
| 832780 | 5/8-11 | 3-1/2 | 2-3/4 | 1-3/4 | 5/8 | 1-1/4 | 3/4 |
| 832790 | 5/8-11 | 4-3/4 | 4" | 2-1/2 | 5/8 | 1-1/4 | 3/4 |
| 832800 | 3/4-10 | 4-1/2 | 3-5/8 | 2" | 3/4 | 1-1/2 | 7/8 |
| 832810 | 3/4-10 | 6" | 5-1/8 | 3" | 3/4 | 1-1/2 | 7/8 |
-
