Toolmaker's Construction Balls (Metric)
Toolmaker's Construction Balls (Metric)
Part No.:
Regular price
$27.60 USD
Regular price
Sale price
$27.60 USD
Unit price
per
Couldn't load pickup availability

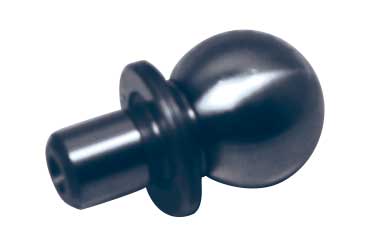

Available with tapped hole for screw mounting. Shoulder provides precise base to centerline dimension to facilitate locating ball center.

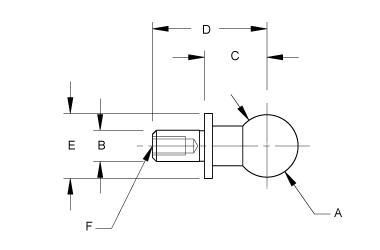

| Part No. | A ±0.0002" |
B ±0.0004" |
C ±0.0002" |
D | E | F | |
|---|---|---|---|---|---|---|---|
| Slip Fit | No Hole | ||||||
| -- | 826883 | 12 mm | 6 mm | 12 mm | 22 mm | 12 mm | -- |
| 826885 | -- | 12 mm | 6 mm | 12 mm | 22 mm | 12.5 mm | #6-32 x 6 mm depth |
| -- | 826887 | 12 mm | 6 mm | 12 mm | 22 mm | 12.5 mm | -- |
| 826889 | -- | 12 mm | 6 mm | 12 mm | 25 mm | 12 mm | M3.5 x 6 mm depth |
-
